當前位置： 首頁 > 產品總匯 > 防爆燈具類 > BGD系列防爆高桿燈（ⅡB、ⅡC）

BGD系列防爆高桿燈（ⅡB、ⅡC）

詳細信息

型號含義 Model implication

適用范圍 Applications

1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.戶外(IP65*)；
4.溫度組別：T1~T4/T5/T6；
5.使用國防、航天、港口工程，儲蓄庫、大型危險品貨柜碼頭、油田開采現場及石化行業等需要大面積集中照明的場所
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or
inflammable dust environment;
3. outdoor(IP65*);
4.Temperature class:T1~T4/T5/T6;
5.It is suitable for centre lighting in large area, such as nationaldefence, spaceflight, port project, warehouse, large dangerousboard port,oil field or oil chemical industry.

產品特點 Features

1.燈具外殼：鑄鋁合金殼體壓鑄成型，表面噴塑；不銹鋼板拉伸成型；SMC或DMC模壓成型；
2.燈桿為鍍鋅鋼管表面噴塑。具有較好的防腐能力。基座采用鑄鐵制造而成，牢固穩定。
3.燈桿和基座均可用戶要求特制。
4.電纜布線。
1.The enclosure is cast with aluminium alloy or strecthed by stainless steel stretching and SMC or DMC extruding, Surface is sprayed with plastic;
2.Junction box or special ballast of road lamp is installed.
3.Lamp pole is galvaniced pipe with plastic-sprayed surface. It can be well corrosive-proof. The base made of cast iron is steadly fixed. Lamp pole and base can be specially made as required.
4.Wiring with or cable.

標準燈桿參數表 Parameter list of standard lamp pole

高度Height(m)
 		 15 18 20 25 30 35 40

底徑Bottom diameter(mm)
頂徑Top diameter(mm)
壁厚Wall thickness(mm)

 360
180
5/5		 400
180
5/6		 480
180
6/6		 570
220
6/6/8		 650
220
6/6/8		 700
250
6/6/8/10		 780
300
6/8/10/12

燈具類型 Lamp type

燈具類型
Product type
 		 燈具類型 Lamp type 防爆標志 Ex-mark 備注 Note

BTd51-□
BTd92-□Ⅱ
BTd52-□

 防爆投光燈 Explosion-proof ploodlight lamp
防爆泛光燈 Explosion-proof floodlight lamp
防爆防腐泛光燈 Explosion erosion-proof floodlight lamp		 ExdⅡBT3/T4、ExdⅡCT3、ExdⅡBT2(1000W)
ExdⅡBT3/T4、ExdⅡCT3/T4
ExnRⅡT3、ExnRⅡT2(100W)

主要技術參數 Main technical parameters

高桿燈執
行標準
Standard

 鋼結構設計規范
Steel structure
standard		 高聳結構設計規范
Topping structure
design criterion		 建筑抗震規范
Construction antiseismic
strength		 建筑結構荷載規范
Construction load
strength		 建筑地基基礎設計規范
The ground design
criterion		 防爆產品設計規范
Design criterion of
explosion-proof product
GBJ17-88 GBJ135-90 GBJ11-89 GBJ19-87 GBJ17-89 GB3836-2000



防爆電機功率
Explosion-proof motor power		 升降方式 Lift way 電機升降速度 Motor lift speed 輸入電源 Input power
0.9~1.4KW 手動/自動 Mannul/Auto 1~6m/min 3P＋N＋PE

產品特點 Features

1.我公司生產的防爆高桿燈結構合理、強度高，組裝、維修和更換光源方便，升降系統和電器系統技術先進、性能可靠；
2.燈桿：采用優質碳素鋼板經加工折彎，自動焊接成型，燈桿的所有金屬構件采用熱浸鋅防腐處理，并進行鈍化處理，使所有內外壁面均獲得妥善保護，以延長使用壽命和節約維護費用；
3.防爆配電控制系統：防爆控制箱固定于燈桿底部，內置照明和電機控制系統，雙回路電力供電，可全負荷照明和部分照明，具有手控、光控及時控等多種控制方式， 可以滿足用戶的不同需求，采用拖纜方式供電，防爆控制箱和照明電纜采用特制的具有鎖定裝置的專用插件連接；
4.防爆自動升降轉動系統：本系統由防爆電機、渦輪蝸桿、卷筒等組成，可以使燈盤在任何位置停止， 并設置過扭矩保護、具有自動、手動兩種操作功能；
5.掛鉤系統：本系統設置了自動掛、脫鉤卸載裝置(且有限位開關)， 使燈盤不受風力作用發生扭動現象，主鋼纜處于卸荷狀態，可保證燈盤在惡劣天氣情況下處于穩定狀態；
6.鋼纜導向滑輪系統：該組件由三組滑輪臂成120° 排列并被固定在燈桿頂部固定支撐上， 每組滑輪臂安裝有：a.終身潤滑密封的特制軸承；b.專用于燈盤自動鎖定， 脫落的卸載裝置；c.高分子非金屬絕緣材料的滑輪，對電纜表面無損傷；d.防止鋼纜滑出導向輪的限位裝置；
7.導向及制動系統：此系統在燈盤正常上升和下降過程中起導向作用，一旦鋼絲繩發生斷裂時，此系統起制動保護作用，防止燈盤墜落，導向系統通過彈簧壓緊的尼龍輪使燈盤在升降過程中始終處于對中位置，防止燈盤偏斜與燈桿碰撞、損傷燈桿或燈盤防腐表面，制動系統由彼此成120°排列的三組裝置組成，由三塊制動器同時鍥入燈桿來完成，一旦懸吊鋼繩再次拉緊，制動器從燈桿上放松使燈盤可以重新升降，在鋼纜處于卸荷狀態時，制動器始終保護鎖定，先進的液壓制動技術防止剛性沖擊，制動力更大，制動平穩無噪聲；
8.防雷接地裝置：防爆高桿燈設置有專用的接地裝置，其接地電阻不大于10Ω；
9.所有機械傳動部位均經過非電器防爆處理。

1.This high pole lamp is with perfect structure, strong intensity, it isconvenient to assembly, maintain orreplace luminaries, reliable liftsystem, electric system and advanced technology;
2. Lamppost: it is bended with perfect carbonate steel, welded automatically, all the metal parts are galvaniaed and passivated, Boththeinternal and external surfaces shall be protected carefully to delaythe service life and save the maintenance charge;
3.Explosion-proof distribution system, explosion-proof control box isfixed on the base, built in lighting and motor control system, doublecircuits to supply power, light for part, it is with manual, optic controland timecontrol ways, which can satisfy different requirements, cablepulling supply, control box and lighting cable adopt special lockingdevice to connect;
4.Explosion-proof automatic lift and driving system: it is composed ofexplosion-proof motor, worm wheel and drum, lamp panel can stop atany position, torsional moment protection, with manual and auto
operation functions;
5.Hook system: this system is with auto loading and unloading device(with limit switch),the lamp panel will not move by the effect of wind,Main steel cable is in relief state, to ensure it can be in stable stateeven in bad weather;
6.Steel cable guide block system: it is composed of three groups ofblock arm of120°,arranged and fixed on the top pf lamp pole, eachgroup mounting:a.life time lubricate seal axletree; b.Special lamp panel can be lockedby itself, drop unloading device; c.Macromolecule non-metal insulationmaterial axletree, it does not damage the surface of cable; d.Limtdevice can prevent the steel cable from going out of the guiaing axletree;
7.Guiding and break system: it is used to guide the lift of lamp panel,if the steel cable breaks, this can make break protection to preventthe lamp panel falling off. Guiding system can make the panel on themiddli position during the lift by nylon wheel to avoid panel crashingwith pole and damage the lamp pole. Break system can be 120°,theyare arranged for three groups, three break devices built in the lamppole, when the hanging steel cable strained again, break device canloose and the panel can lift again.When the steel cable is under therelief state,break device is locked all the time. Advanced liquid breaktechnology can prevent steel impact, strong break force without noise;
8.Lightning protecting earth device: The are special earth device on theexplosion-proof high lamp, the earth resistance is not more than 10Ω;
9.All the mechanicaldrive parts are treated with non-electric equipmentexplosion-proof treatment.

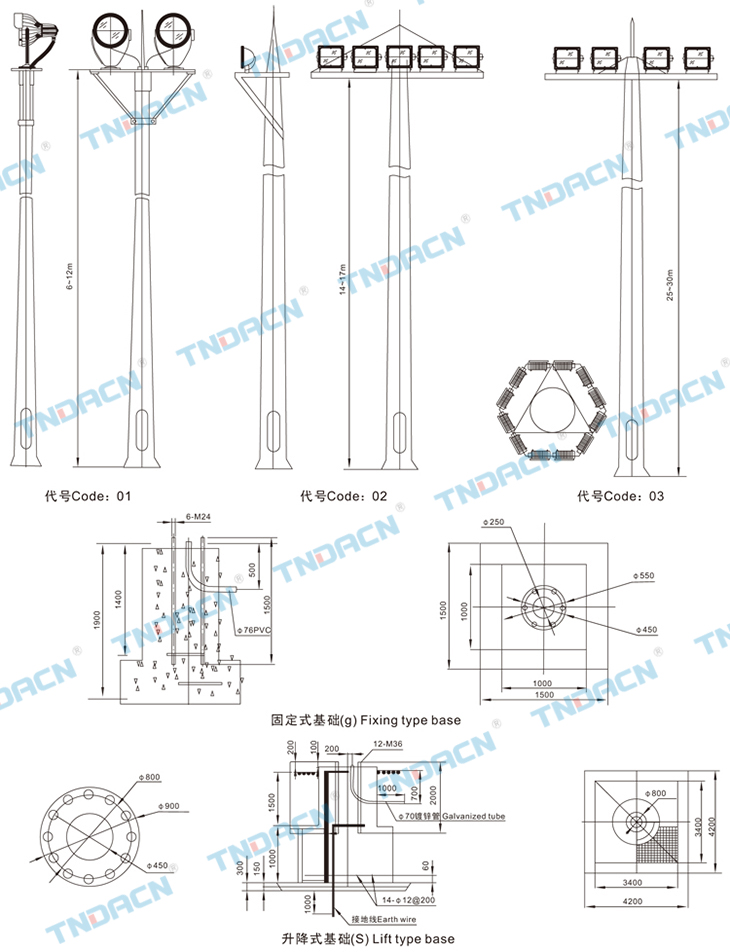

注：1.以上基礎僅供參考，具體應根據當?shù)貧夂虻刭|(zhì)條件制定；
2.防爆高桿燈的基礎由用戶自備。
Note:1.It is only for reference, the concrept mounting shall be
made according to local condition;
2.Base of the high pole lamp shall be prepared by user
